Custom Propeller Design
A customer wanted to build a 1/3 scale P51 mustang for his son, and needed someone to design a propeller assembly for that plane.
This is a story of the design and fabrication process
These are images of an old plane from which we started our design
I began with the main hub and coupler design. This is the main rotating assembly of the propeller and requires a robust design.
This is the version 1 CAD assembly of the main hub and all four blades.

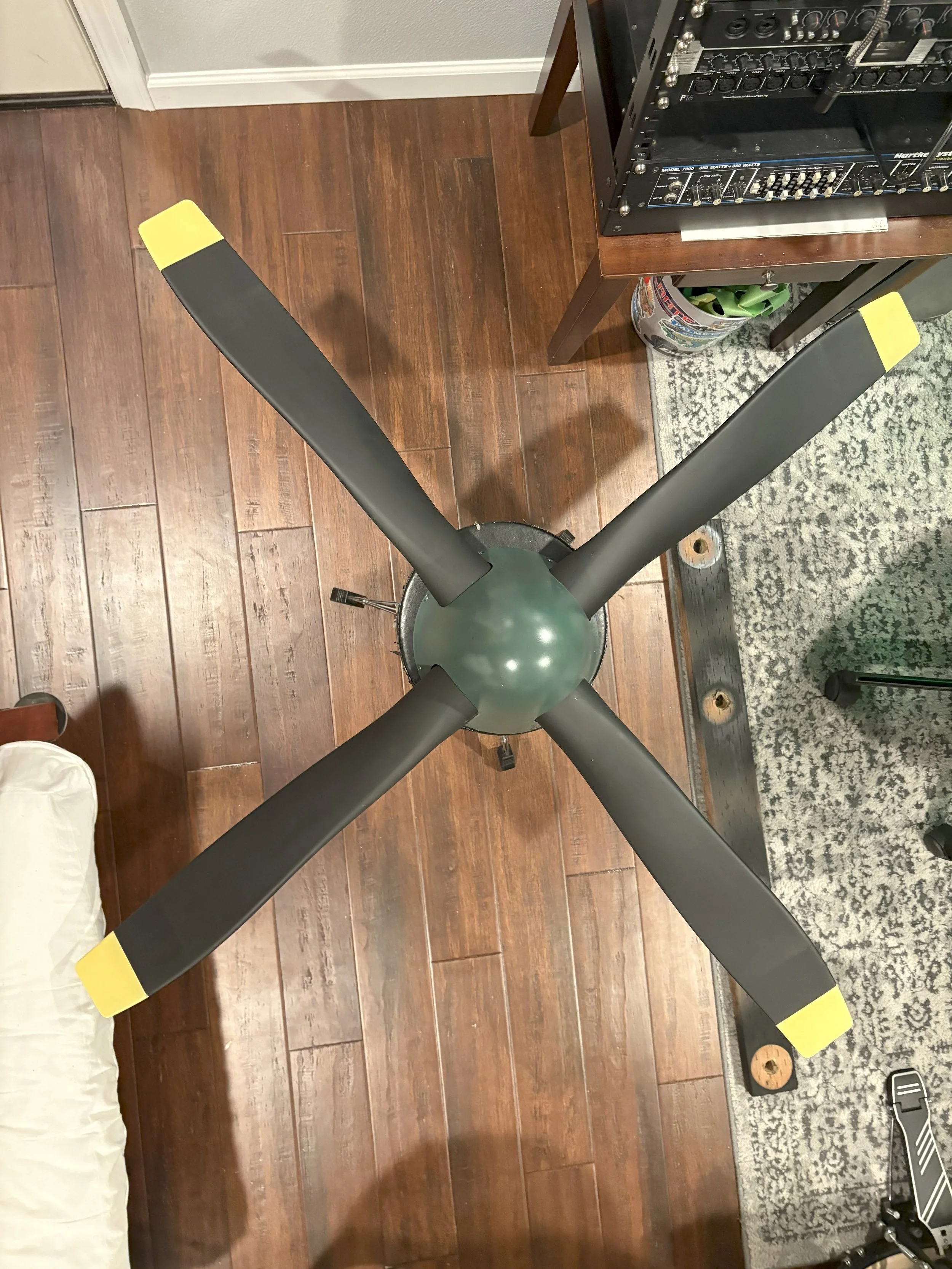

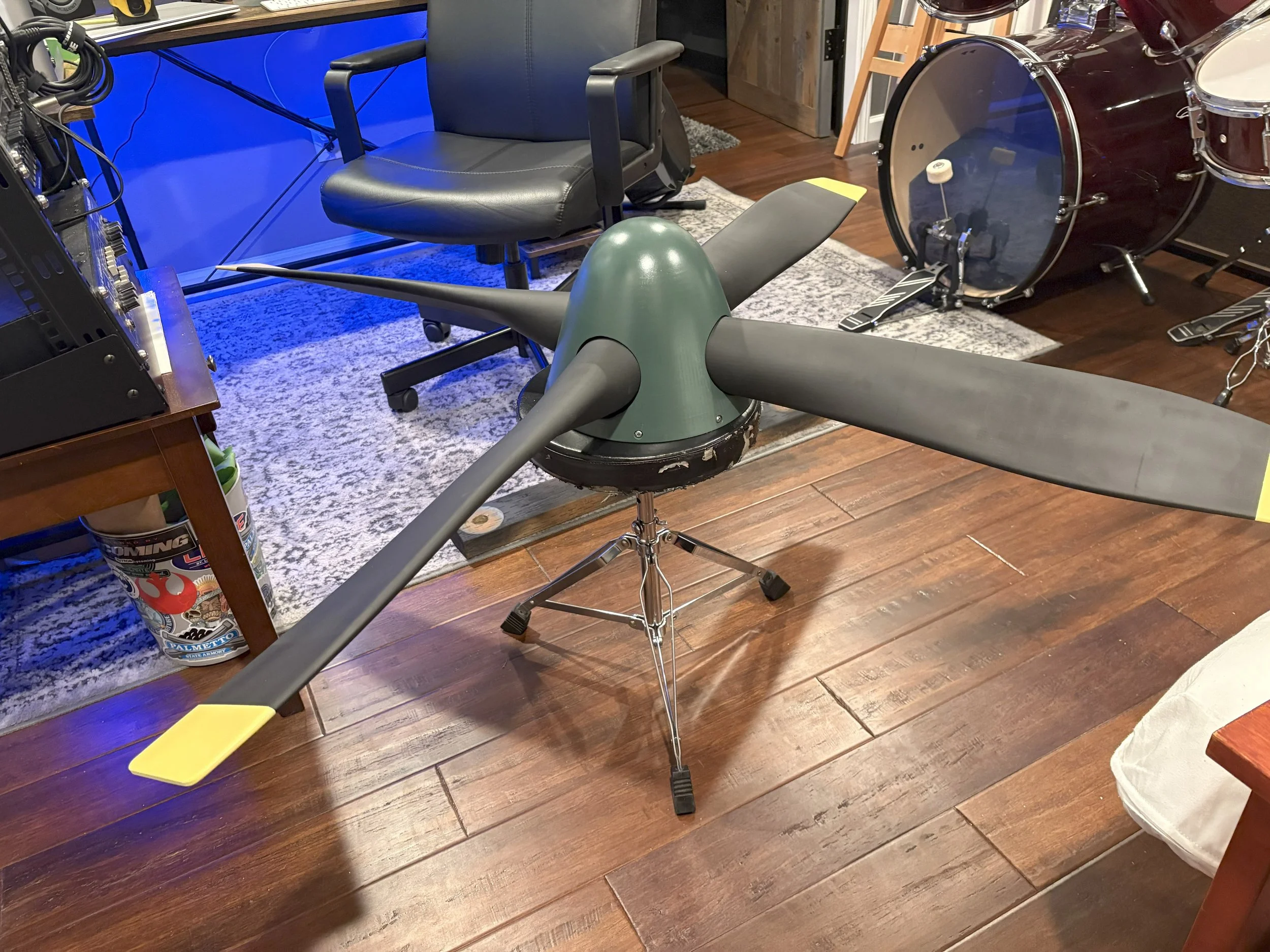

Finished product of version 1 of the Prop assembly. Painted and ready to fly!
